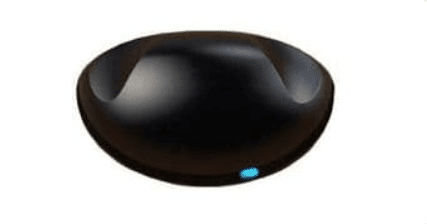

Hotron HR50-Uni Radar


Hotron HR50-Uni Radar

  • ModelHR50 & HR50-UNI: Pedestrian Door Activation
  • Detection MethodK-Band 24.125Ghz – Microwave Motion Detection
  • Installation HeightMax 4000mm (13.1ft)
  • Sensor Dimensions120mm (W), 70mm (H), 41.5mm (D)
  • Presence TimerNone
  • IP Rating54
  • Power Supply12 to 30V DC, 12 to 24V AC
  • Power Consumption40mA (DC24V)
  • Operating Temperature-30°C to +55°C, (-22°F to 131°F)
  • Weight91g + 160g(box)
  • Available ColoursBlack Product Code = HR50/BL or HR50-UNI/BL: Silver Product Code = HR50/S or HR50-UNI/S

Product Datasheets


Large Detection Area

    • Large detection area ensures timely door opening for doors approached by shopping trolleys or fast moving pedestrian traffic
    • 360˚ adjustable radar antenna allows the detection area to be focused where it is required

Swing Door Compatible

    • Uni-directional detecting technology facilitates HR50-UNI’s use as a swing door activation sensor

Pedestrian Safety

    • Turtle mode technology maintains detection of slow moving pedestrians as they approach the door

Energy Efficiency

    • Unidirectional detecting technology reduces building energy losses by as much as 20%
